FEATURES

These Bronto features are designed with operator safety as the highest priority. Each model boasts an abundance of power, convenience, and versatility to outperform at the toughest job sites in the world.

Speak with our experienced team to learn more about all of the Bronto Skylift features.

CALL TODAY

Speak with our experienced team to learn more about all of the Bronto Skylift features.

CALL TODAY
Bronto-Features-Graphic

PLATFORM

PLATFORM CAPACITY
PLATFORM ROTATION
PLATFORM TOOL CIRCUITS
PLATFORM SAFETY

BOOM

BOOM FUNCTIONS
MIN. CLEARANCE SETUP
CONTROL STATIONS

OUTRIGGERS

AUTO LEVELING SYSTEM
OUTRIGGER LEVELING
VARIABLE OUTRIGGER EXT.

CHASSIS

ALL WHEEL DRIVE CHASSIS
ALL WHEEL STEER CHASSIS

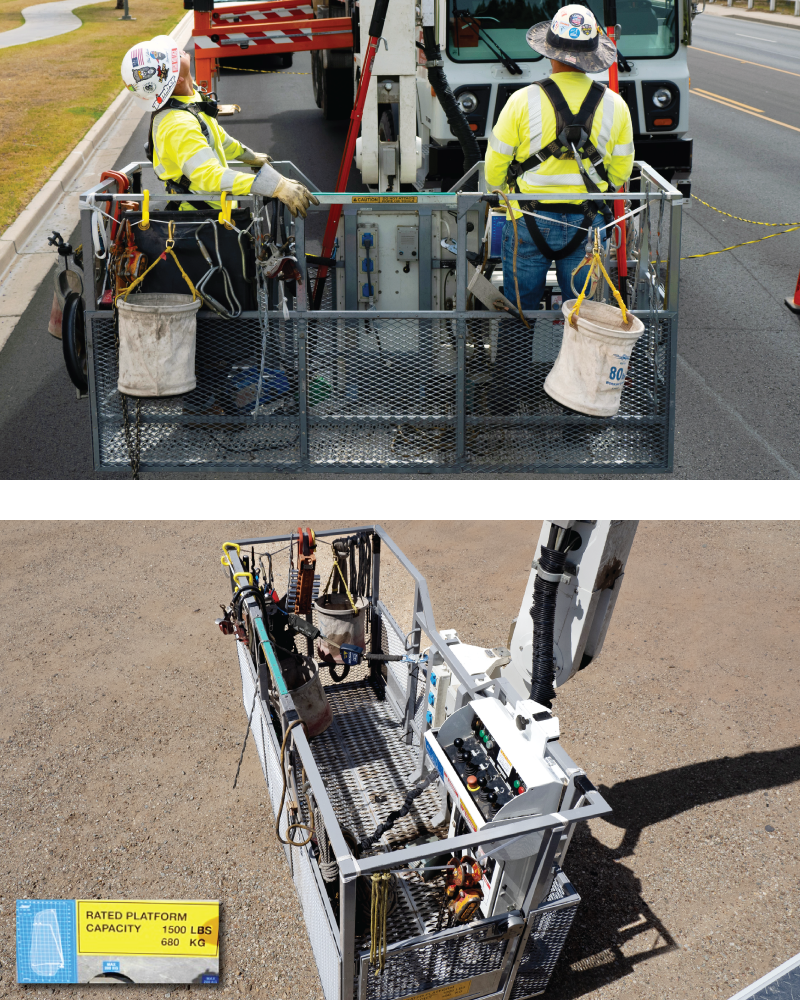

PLATFORM CAPACITY

  • Max Capacity: 250-1500 lbs (Total of Personnel, Jib Winch, and Materials)
  • Large Steel Platform: 39” x 78” x 42”
FeaturesPage-Platform-Capacity
FeaturesPage-Platform-Rotation-01

PLATFORM ROTATION

  • Platform Rotation: +/-90° – 180° Total
  • Platform Rotation permits the operator to maintain the platform parallel to the work surface
FeaturesPage-Platform-Rotation-02

PLATFORM TOOL CIRCUITS

  • 110V Circuit to Platform
  • Hydraulic Tool Circuit
  • Hydraulic 110V Generator
FeaturesPage-Platform-Tool-Circuits
FeaturesPage-Platform-Safety

PLATFORM SAFETY

  • Intercom System
  • Platform Control Console
  • Emergency Boom Lowering System
  • Manual Platform Leveling
  • Multiple Safety Lanyard Attachment Points

BOOM FUNCTIONS

  • Continuous 360° Turret Rotation
  • Dual Main Boom Lifting Cylinders
  • Multiple Main Boom Telescoping Sections
  • Articulating and Telescoping Upper Boom
FeaturesPage-Boom-Functions
FeaturesPage-Minimum-Clearance-Setup

MINIMUM CLEARANCE SETUP

Only 25 ft of overhead clearance is required for complete functionality.

CONTROL STATIONS

Command Turret Control Station

  • Override for ALL aerial functions
  • Primary control station
  • Functions are individual control levers
  • Two emergency lowering features include battery powered and manual bleed down

Command Platform Control Station

  • Controls ALL aerial functions
  • Functions are individual control levers
  • Two emergency lowering features include battery powered and manual bleed down
FeaturesPage-Control-Stations
FeaturesPage-Auto-Leveling-System

AUTO LEVELING SYSTEM

  • Hand-held remote controller allows the operator to safely view both sides of the vehicle
  • LED screen provides visual confirmation of outrigger positions and boom function interlock

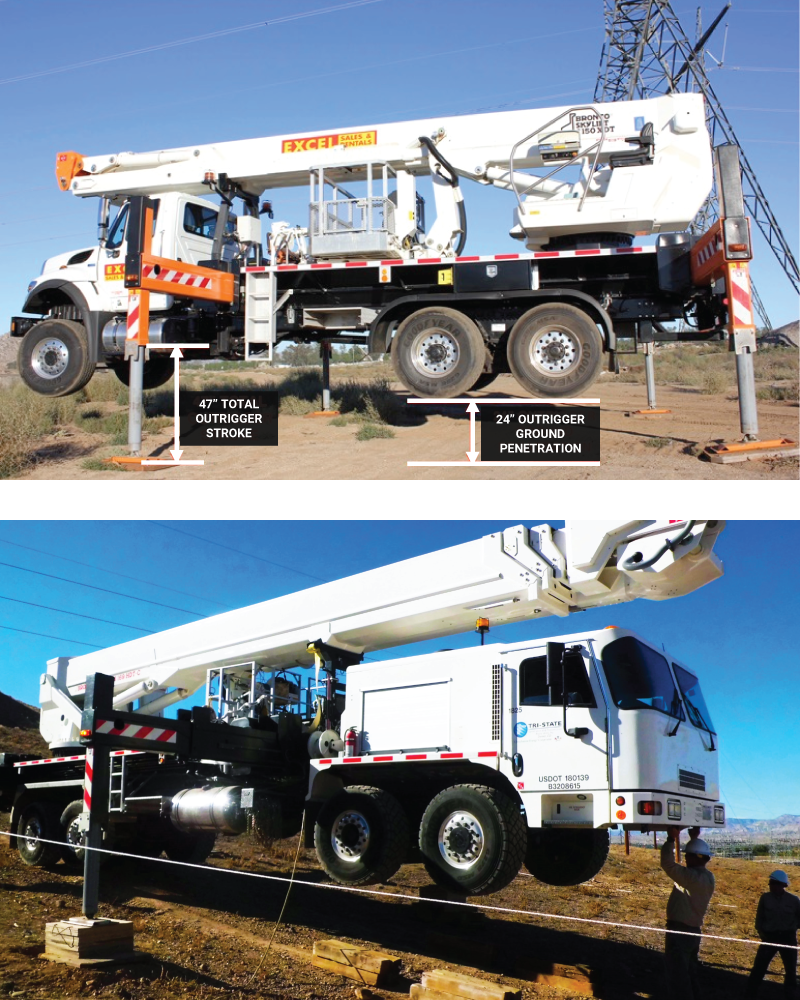

OUTRIGGER LEVELING

  • 47” Outrigger Stroke
  • 24” of Ground Penetration
  • Capable of Leveling Vehicle 3° Front to Rear
  • Capable of Leveling Vehicle 2.5° Side to Side
FeaturesPage-Outrigger-Leveling
FeaturesPage-Variable-Outrigger-Extension-01

VARIABLE OUTRIGGER EXTENSION

  • One-Sided Outrigger Operation Feature
    (HDT and HLA Models)
  • Variable Outrigger Operation Feature
    (XDT Models)
FeaturesPage-Variable-Outrigger-Extension-02

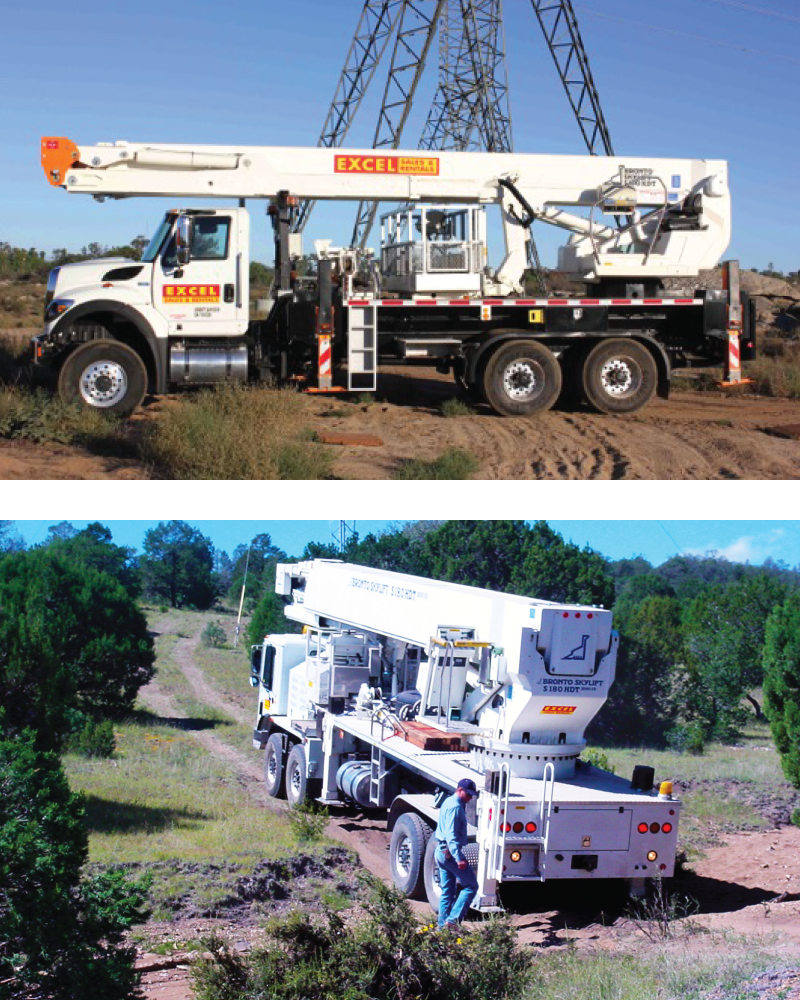

ALL WHEEL DRIVE CHASSIS

Partner-Logo-Navistar
  • Navistar Model 7500 SFA
  • 6×6 Mechanical Front Drive
  • All 425/65R 22.5 Super Singles
Partner-Logo-TOR
  • TOR Truck
  • 8×6 Mechanical Front Drive
  • Front and Rear Departure Angles (16° to 18°)
FeaturesPage-All-Wheel-Steer-Chassis

ALL WHEEL STEER CHASSIS

  • Standard – Turning Radius: 98 ft
  • Rear Steer Engaged – Turning Radius: 56 ft
  • Rear Wheel Steer – when engaged, limits maximum vehicle speed to 15 mph
